Description
Product Details
Powered by the Android operating platform, DCA-8050B is a mobile Android EFT-POS terminal.DCA-8050B is an Android handheld POS with NFC reader and barcode scanner. Integrated with 5” large screen, Quad-core processor and Android OS, DCA-8050B is convenient for user operation. It supports 4GLTE, 3G WCDMA, WIFI, Bluetooth and Ethernet, which satisfied all kinds network requirements. It’s mainly used as ID verification, E-ticket printer, fiscal memory, voting and top-up in various industries.
Convenient Payment
In order to offer well service in various fields, PTKSAI mobile Android EFT-POS terminal is EMV & PCI certified, which are the highest security standard worldwide.
5inch Touch Display
5 inches IPS Sunlight Display, 1280*720 high resolution, makes use of mobile POS terminal DCA-8050B watch comfortable and operating smooth.
4
Impressive Processor
DCA-8050B mobile POS terminal equips with Quad-core 1.3Ghz CPU, which can run smoothly with 20 Apps concurrently. 1GB RAM and 8GB flash.
5

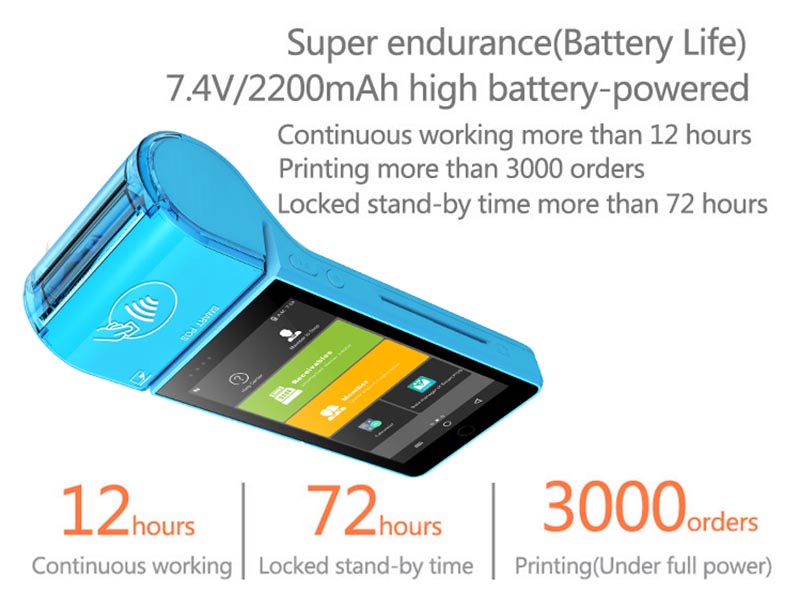

Super Endurance
With Super endurance battery life,DCA-8050B can be continuously working more than 12 hours; printing more than 3000 orders, and locked standby time more than 72 hours.
6

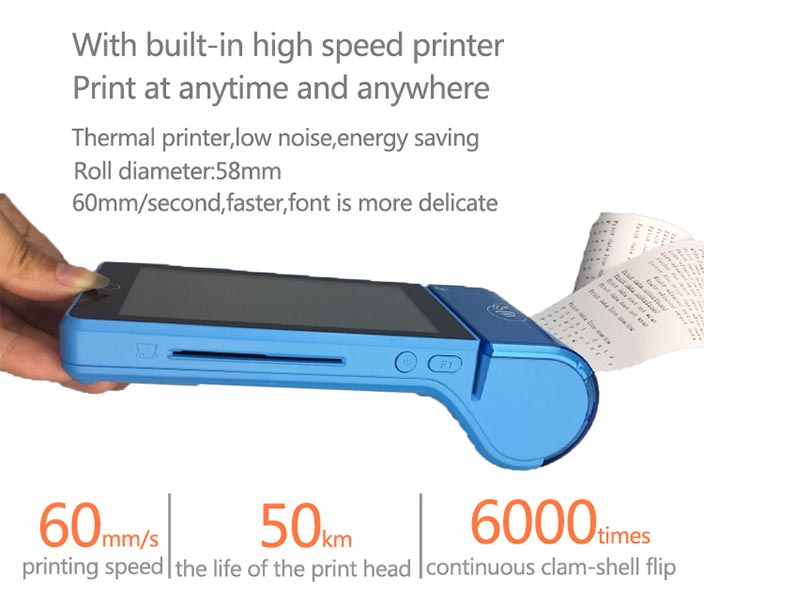

Built-in Printer
With a built-in high-speed printer,DCA-8050B mobile POS terminal can print at any time and anywhere. The thermal printer is low noise and energy saving. Printer Speed is 60mm/sec, faster. The print font is neat and clear.DCA-8050B can offer a custom service for printing in multiple languages.
7

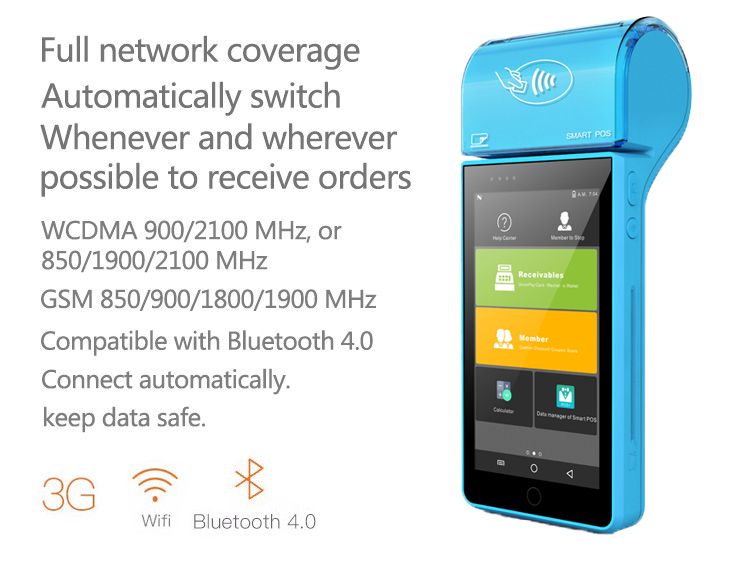

Powerful Functions
DCA-8050B is full network coverage, WCDMA /GSM / Bluetooth / Wi-Fi.Besides, built-in camera can read 1D & 2D barcode with 0.5 seconds. 5M pixel, auto-focusing camera, support scanning Code128, EAN13, Interleaved 2 of 5, Data Matrix, PDF417, QR-code, etc.
Applications
TheDCA-8050B Smart Cash Register has undergone rigorous quality testing from material selection to production and assembly. The products are durable, smart and stylish, and have been widely used in restaurants, hotels, supermarkets, shopping centers, airport and other high-end places.
Drugstore
Restaurant
Outdoor restaurant
Green grocery
| Operation System | Android 7.0 | |
| CPU | MTK8735V/C 64 bit quad coreA53 1.3 GHz | |
| Security Processor | NXP KL81 | |
| Display | 5.0 inch color display screen，resolution：720*1280 | |
| Touch Panel | Ultra sensitive capacitive TP，support multi-point touch, gloves touch | |
| Storage | 1 set | |
| 3-way syringe (cold /hot water) | RAM：1GB (EMCP) Flash：8GB (EMCP) |
|
| Dimension | 193*80*54.5MM | |
| Weight | 425g（include battery) | |
| Password keyboard | Built in password keyboard (virtual key). Supports 3DES, ANSIX9.9, ANS9.8 algorithms, supports the initial transmission key download, supports the key ciphertext encrypted with the transmission key to download. | |
| Auxiliary button | Main key, paper key, power key | |
| Bar code | 1D/2D Bar code reader；
All international one dimensional bar code and two-dimensional bar code can be read； Can read screen bar code and color bar code |
|
| Camera | 2 million pixels, support lights, video | |
| Battery | 4.35V 4000mAh Polymer battery work duration： 8-10 hours (depending on the circumstances) | |
| RTC Battery | Support | |
| Mobile Network | Mobile 4G(TD-LTE)
Unicom 4G(FDD-LTE) Telecom 4G(FDD-LTE) |
TDD-LTE (B34、B38、B39、B40、B41)
FDD-LTE (B1、B3、B8) |
| Unicom 3G(WCDMA)
Telecom 3G（CDMA2000） |
UMTS/HSDPA/HSPA/HSPA+ (850,900,1900,2100 MHz)
CDMA EV-DO Rev.A (800MHz)(OPT) |
|
| Mobile 2G(GSM)
Unicom 2G(GSM) Telecom 2G(CDMA) |
GSM/EDGE/GPRS (850,900,1800,1900MHz) | |
| Mobile 2G(GSM)
Unicom 2G(GSM) Telecom 2G(CDMA) |
GSM/EDGE/GPRS (850,900,1800,1900MHz) | |
| Card Readers | Magstripe | Support 1/2/3 tracks, support two-way swipe card, comply with IS07811/7812/7813 and other general standards. |
| Smart Card | Comply with ISO7816 standards, has passed the China UnionPay PBOC 3, LEVEL, 1&2, EMV 4.3, LEVEL, 1&2 certification | |
| Contactless | support ISO/IEC 14443 A&B、Mifare1 card | |
| Printer | Support high-speed mute thermal printing, paper width： 58mm, maximum roll diameter： 30mm | |
| Power consumption index | Standby current <15mA, can complete more than 300 transactions on one charge | |
| Standby Time | more than 3 days | |
| Trouble free service time | The average of trouble free working time is more than 50000 hours | |
| Charge Time | not more than 3 hours | |
| Indicator | 4 indicator lights, one blue, one yellow, one green, one red | |
| Prompt | Built in speakers and microphones, support voice prompts, audio recording, audio play | |
| GPS Tracking | GPS | |
| PSAM card slot | 2 | |
| Ext Card | one SIM card slot | |
| Physical interface | Micro USB | |
| Audio | Speaker, microphone | |
| External power supply | The output voltage is 5V, the output rated current is 2A, the input voltage is 100-240V, the frequency is 50-60HZ, and the maximum input current is 0.3A | |
| Humidity | 5%RH～95%RH (Non coagulation ) | |
